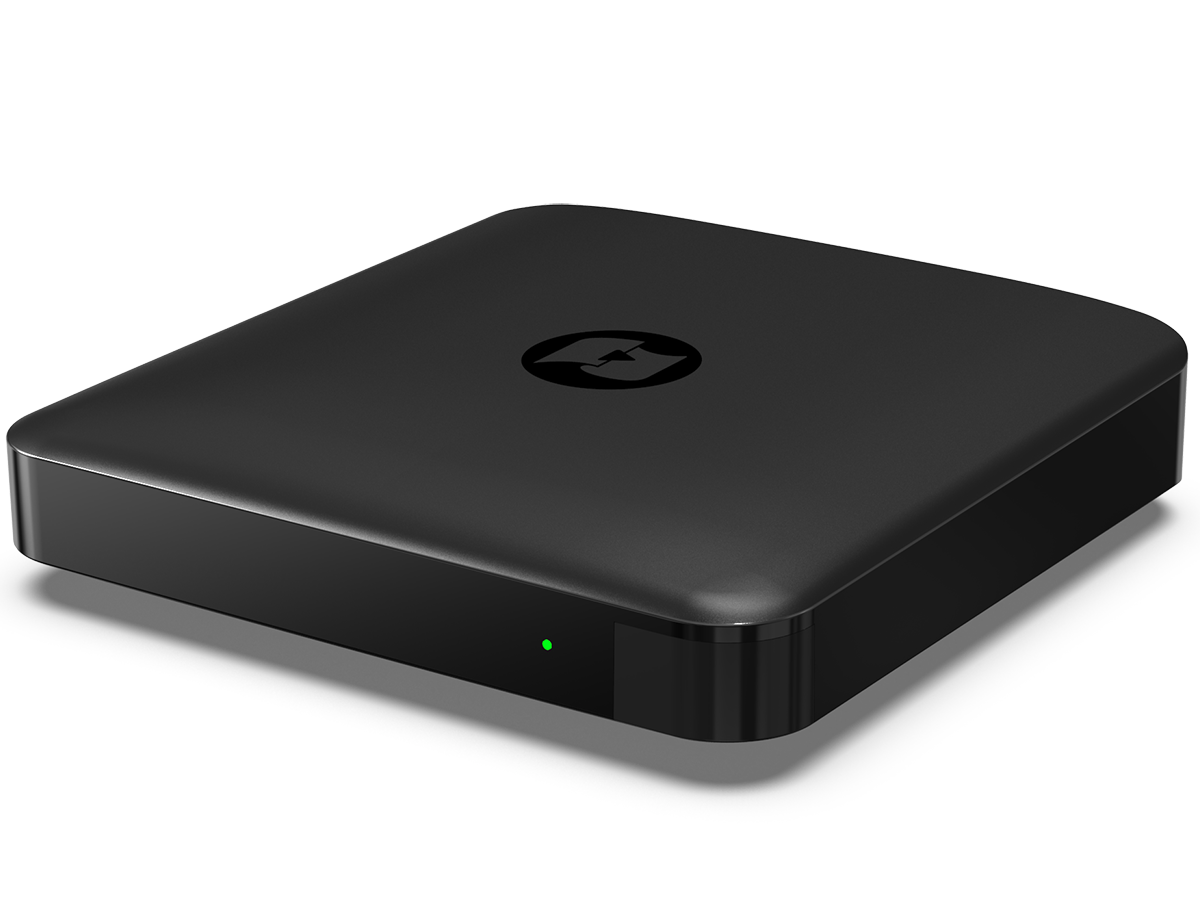

H670T - 4K UHD STB with Wi-Fi 6

H670 series set-top box is one of the world’s first 4K UHD STBs good support AV1 video decoding, Wi-Fi 6 (802.11AX) and Verimatrix Ultra DRM functions.

This STB was designed for telecom, broadcasting and Pay TV operators and ready for volume production now.

Software can support both Linux(default OS) and AndroidTV. Beside various 4K UHD formats decoding support, hardware wonderfully support HEVC 1080P encoder, full HDR standards, diverse output interfaces such as HDMI 2.1, USB3.0, G-ethernet, and PCI-e, even built-in 2*2 AX wifi module. In addition to a built-in DVB-T module ready for free-to-air TV access, thereby delivering a hybrid usage senario for operators.

Recommended accessories for H670 include a Bluetooth voice remote control, user manual, a power adapter, and a HDMI cable. Check the product spec for further details, and/or to contact sales.


Product Gallery

View the embedded image gallery online at:
http://hybroad.com/component/k2/item/14-h670#sigProIdec5e0d3dab

Specification

  • Processor: Quad-core ARM Cortex-B53 CPU, 24,000DMIPS, 3D GPU
  • RAM: 2G Byte
  • Flash Memory: 8G Byte EMMC
  • Operating System: Linux, Android TV
  • Ethernet: 100M
  • Wi-Fi: 2x2 802.11ax (Wi-Fi 6)
  • Bluetooth: Bluetooth 4.1
  • Front Panel: IR Receiver; LED

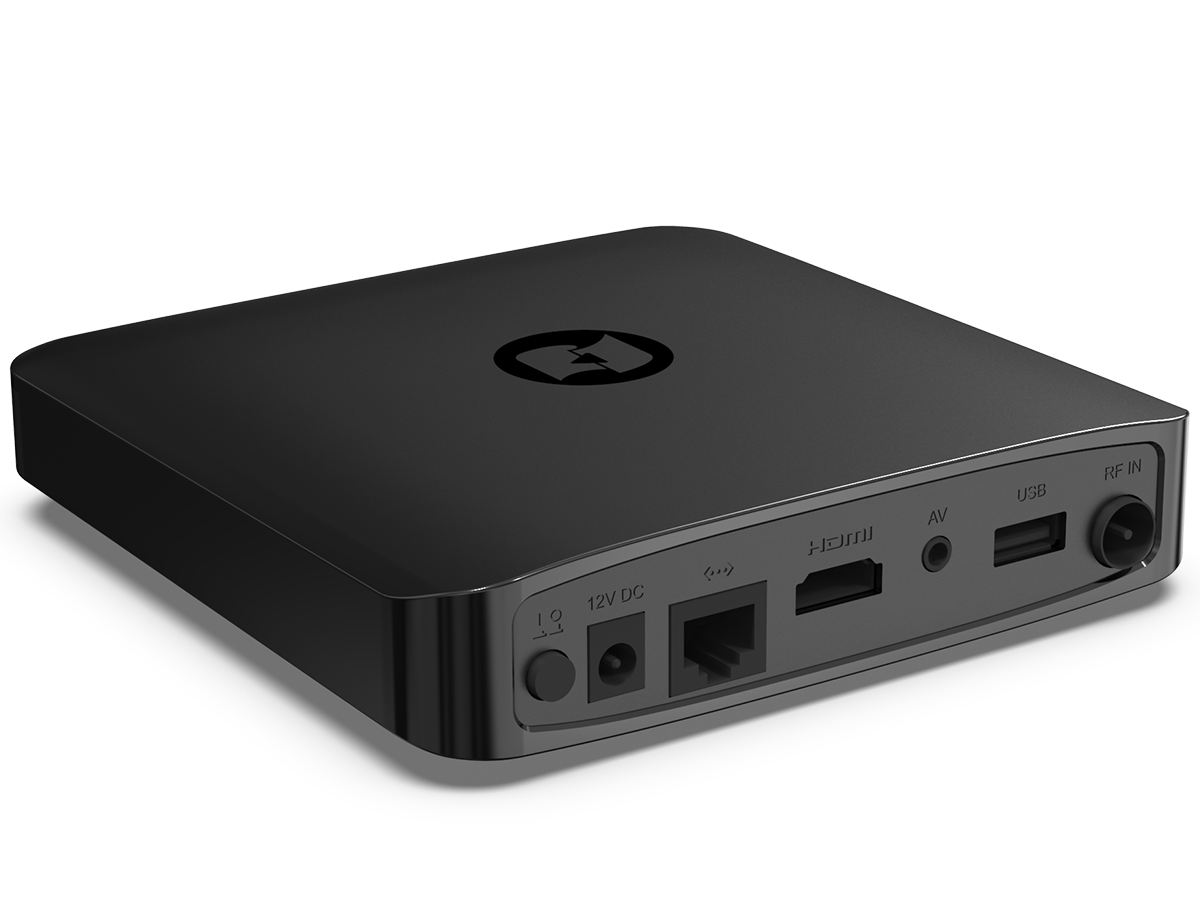

  • Back Panel: Power Input, Power Button, HDMI 2.0, USB2.0 Type-A, MiniAV
  • Video Modes: 2160p, 1080p, 1080i, 720p
  • Video Codec: HEVC Main and Main10 profile up to 2160p60, HEVC Main and Main10 profile up to 1080p60, AVC High Profile up to 1080p60, MPEG-1/2, VC-1 ( Optional )
  • Audio сodecs: MPEG-1 layer I/II, AAC-LC, HE-AAC v1, HE-AAC v2, Dolby Digital Plus ( Optional ), WMA ( Optional )
  • Tuner: DVB-T/T2
